Specification:

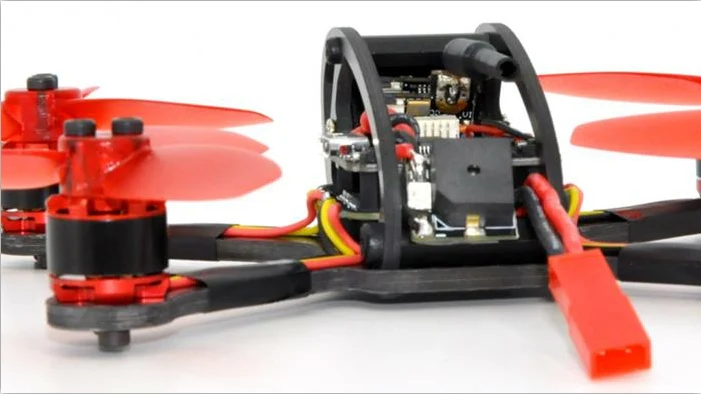

Item name: Leader-120 Mini FPV Racing Drone
Weelbase: 120mm
Size: 115mm * 90mm * 30mm
Weight: 70g (without battery)
Thickness of bottom plate: 3mm
Thickness of side plate: 2mm
Motor: 1104 7500KV brushless motor
ESC: 10A BLHELI_S 16.5 2-3S 4in1 ESC Dshot600
Propeller: 70mm 3-blade propeller
Compatible receiver: Frsky / D SMX / Flysky AFHDS2A
Camera: 600TVL HD camera
VTX: 5.8g 25MW 48CH NTSC vedio transmitter
Flight controller: Minicube Betaflight F3 6DOF built-in OSD
OSD: Betaflight OSD
Firmware of F C: Betaflight 3.1
Flight time: 3-6mins
Buzzer: 13*13mm (with LED)
Battery: 7.4V 550mah 80C lipo battery
Minicube F3 6DOF flight controller:
Size: 27mm * 27mm * 5mm
Mounting hole: 20mm * 20mm
MCU: STM32 F303
Sensor: SPI sensor MPU6000
Built-in Betaflight OSD
Firmware: OmnibusF3 Betaflight 3.1 Dshot
Notes: the version comes without receiver.
Minicube 10A BLHELI_S 4in1 ESC Dshot600:
Size: 27mm * 27mm * 5mm
Mounting hole: 20mm * 20mm
Firmware: BLHELI_S 16.5
BB2, 48MHZ chip
Lipo battery: 2-3S
Continuous current: 10A
Summit current: 15A (10S)
BEC: 5V 1A
Programming: yes
Betaflight passtrough ready
Dshot600 ready(Default)
Support onehot42 onehot125 Multishot Dshot
Support Brake function
Features:
-Support Cleanflight / Betaflight
-Support automatic / semi-automatic / manual flight mode
-PID parameters can be adjusted by remote control
-Built-in OSD
-BLHELI_S ESC firmware
-Support telemetry RSSI return
package included:
1 x Leader-120 frame kit
1 x Betaflight F3 6DOF flight controller built-in OSD
4 x1104 7500KV brushless motor
1 x Minicube 10A BLHELI_S 16.5 2-3S 4in1 ESC Dshot600
4 x 70mm 3-blade propeller (CW)
4 x 70mm 3-blade propeller (CCW)
1 x 600TVL HD camera
1 x 5.8g 25MW 48CH NTSC vedio transmitter
1 x 7.4V 550mah 80C lipo battery
