Free Worldwide Shipping

Mini MD90 90mm FPV Racing Drone Mini F3 Flytower FPV 5.8G 48CH 25MW VTX Built-in Transmitter 600TVL Camera 1104 4000KV Motor

100% of buyers enjoyed this product! 1 order
799
Quantity:
View cart→


Product Feature

Package included:

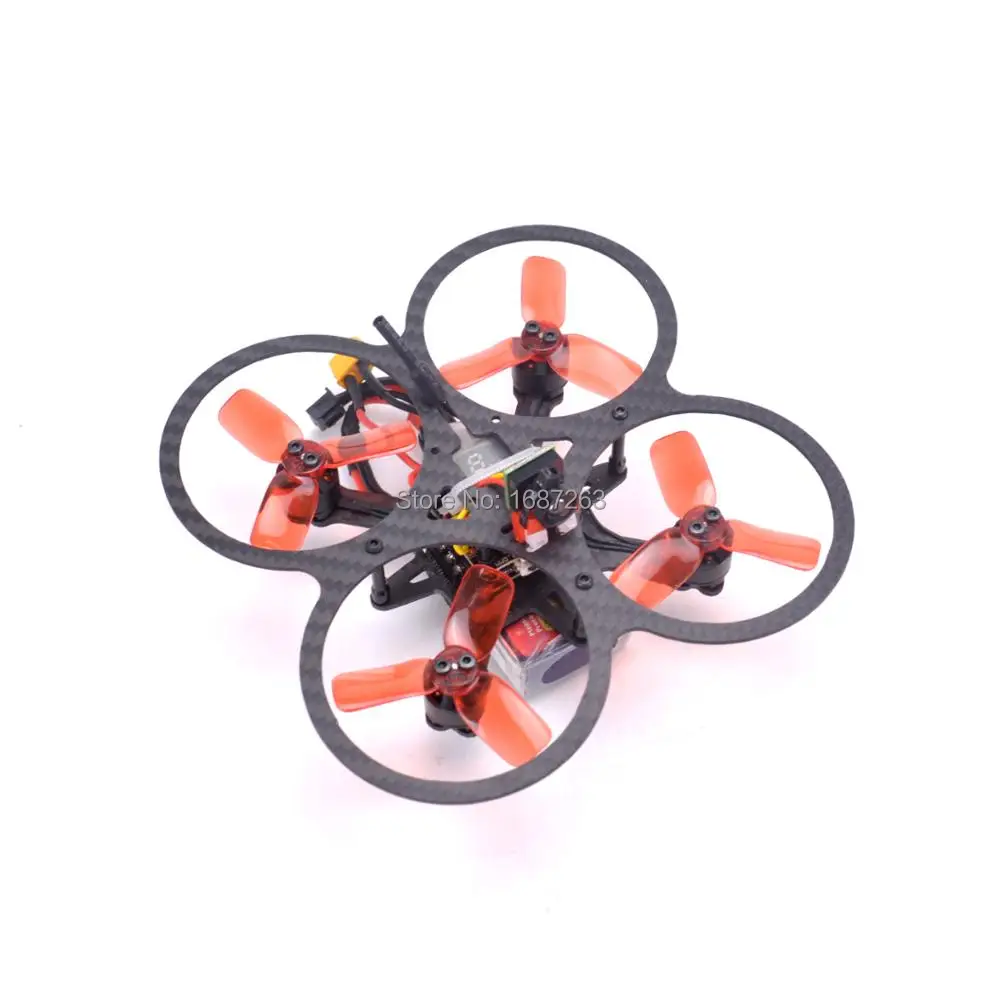

1x MD90 Frame Kit

1 x Mini F3 Flytower

1 x 5.8G 25mW Transmitter

1x 600TVL camera

4 x 1104 4000kv motor

2 pairs 2030 propeller

Note:
1. The frame will be assembled well before shipping, and you need to setup it before flying .

2. The package comes without battery, charger, receiver or remote control.


MD90 Specifications:

Wheel Base: 90mm
Weight:about 19g
Upper Board Thickness: 1.5 mm
Bottom board Thinckness:2mm


1104 4000KV Brushless Motor

Specification:
– KV:4000KV
– Motor size: diameter 14*12.5
– Stator Diameter: 14mm
– Stator Length:12.5mm
– Shaft Diameter:1.5mm
– Motor Dimensions(Dia*Len): diameter 14*12.5mm
– No.of Cells(Lipo):2-3S
– Max Continuous current(A): 3.5A
– Max Continuous Power(W): 38.9W

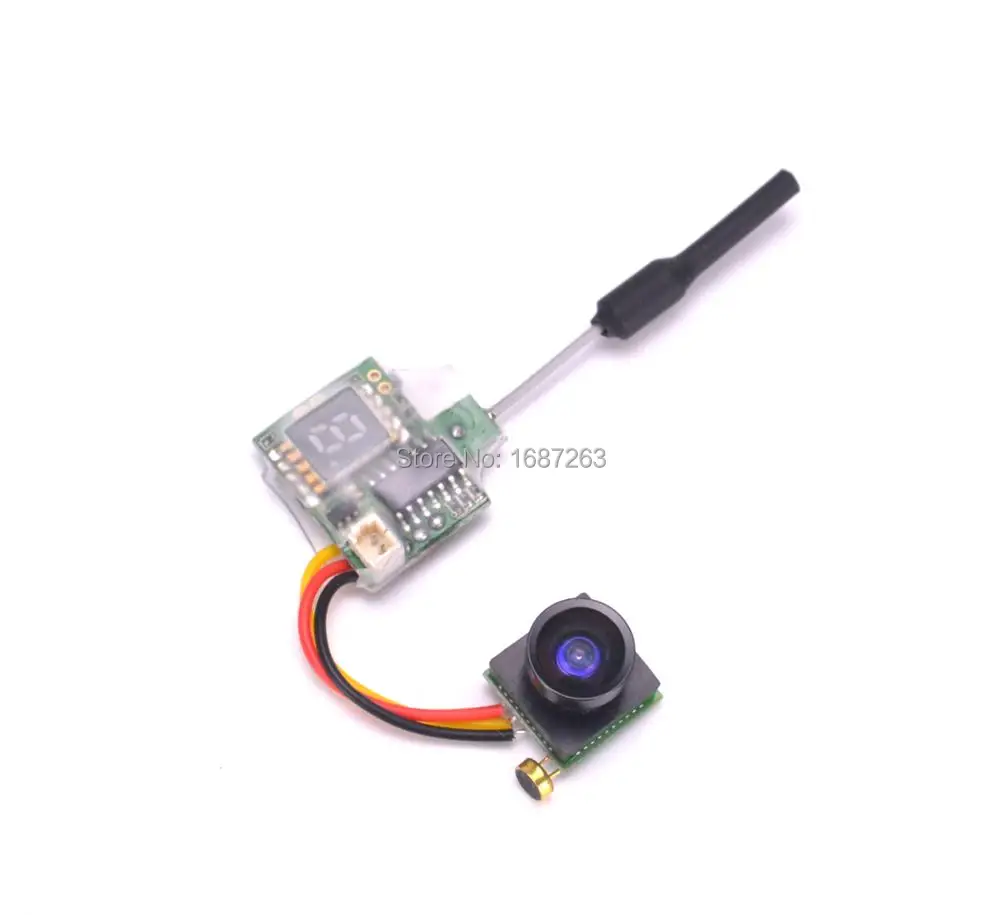

Transmitter

Support video format :PAL
Output Impedance: 50 Ohm
Output signal strength: 13±1dbmdBm
Output Power: 25mW
Wireless Channel: 48CH
Operating voltage: 5v
Current: 100mA

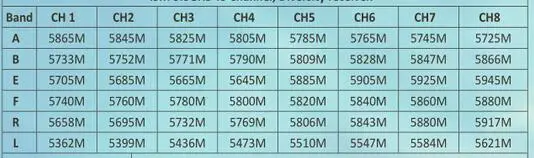

Frequency : 5 BAND 48CH 5645 ~ 5945 MHz

Note: Please kindly use the BEC or flight controller stable power supply to transmitter , otherwise will be instability.



600TVL 170 degree Mini Camera

orizontal Resolution : 600TVL
Minimum lllumination: 0LUX(LED ON)
S/N ratio ≥48dB
Gama :0.45
Frame speed: 50f/s(PAL)
White balance: Auto
Audio out : Monophonic
Video out: 1.2Vp-p 75Ω CVBS
Image color: Color
TV format : PAL
Lens: 1.8mm Wide view angle 170 Degree


IR Distance :1-3 Meters
Working temperature : -10~+50Degree C
Input power : 5V(Module)/DC9-12V(With step-down AV cable)
Power consumption :120mA
Size : 12.5mm*12mm(D*H)
Weight: 3.8g



Flytower F3 Integrated OSD Mini Flight Control

1.Specially designed for small traversing machine, suitable for the following sizes of 280mm frame, especially 130mm internal frame, can play small and functional advantages;
2.This board provides all the functions with a weight of 8G, size only 27*27MM, and a fixed hole of 20MM (M2.5 hole);
3.Designed for four axis models, built in LC filter, support BF firmware (Omnibus, F3 firmware);
4.The use of STM32F303 microcontroller, MPU6000 sensor, SPI interface connection, faster computing speed;
5.Support 2-4S power input;
6.Built-in 5V 1A output BEC;
7.Support SBUS/PPM/DSMX and other mainstream receiver market;
8.Buzzer / programming LED/ voltage monitoring, /BLHELI electro modulation programming

The flight control is used to assemble about 80-90 small shafts, the motor chooses 1104 7500KV, and the battery is about 2S 400-500MAH. The blade uses 3 blades or 4 leaves of 2 oars. The receiver then recommends the purchase of a micro receiver (FRSKY, FLYSKY, DSM2, fly micro receiver). Try to be the lightest and simplest! Graph transmission select 25-200 adjustable integration diagram transmission, but the map transmission must be connected to the power supply
Omnibus F3 (integrated OSD) Mini flight control parameter:
A, equipped with MPU6000 F3 flight acceleration response faster; integrated 5V/1A BEC, integrated OSD. (this version is 6DOF, no barometer and electronic compass)

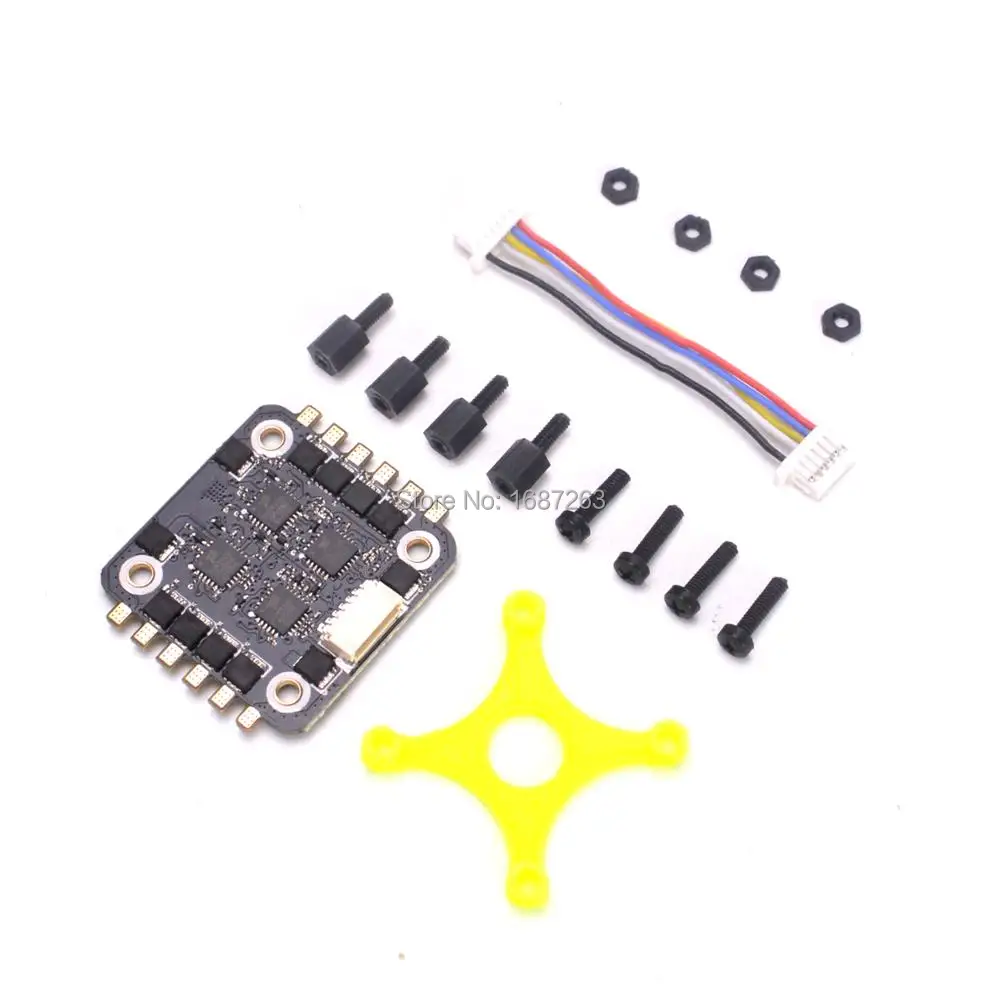

BS-20A 4 in 1 ESC:

4 IN 1 through machine BLHELI S ESC

Parameters:

1. Input voltage: 2-4S LiPo
2. BEC output: none
3. Single ESC continuous operating current: 20A
4. Four in one ESC size: 27 X 31mm
5. ESC weight: 3.7g
6. Firmware: BLHELI_S
7. Support DSHOT, Oneshot,
8. Processor: SILABS EFM8BB21F16G
9. MOS tube: TPN2R703NL



Product Pictures

DSC_0355
DSC_0361
DSC_0358
DSC_0354
DSC_0364
DSC_0362

DSC_0307
F3  (4)
DSC_0689












Tool Supplies:
 Battery
RC Parts & Accs:
 Motor Components
Four-wheel Drive Attributes:
 Motors
Technical parameters:
 Value 4
Upgrade Parts/Accessories:
 Frame
Material:
 Composite Material
Remote Control Peripherals/Devices:
 Remote Controller
Use:
 Vehicles & Remote Control Toys
Brand Name:
 Readytosky
Model Number:
 MD 90mm 90 Frame
For Vehicle Type:
 Helicopters

Packaging Details

Type:
 Pack
Weight:
0.5kg (1.10lb.)
Size:
15cm x 12cm x 15cm (5.91in x 4.72in x 5.91in)
