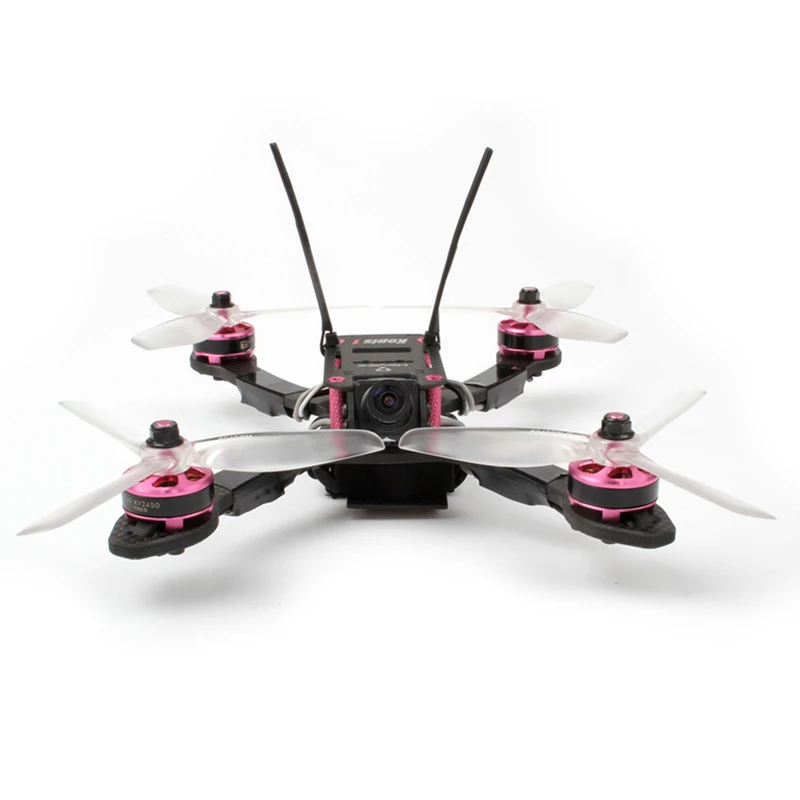

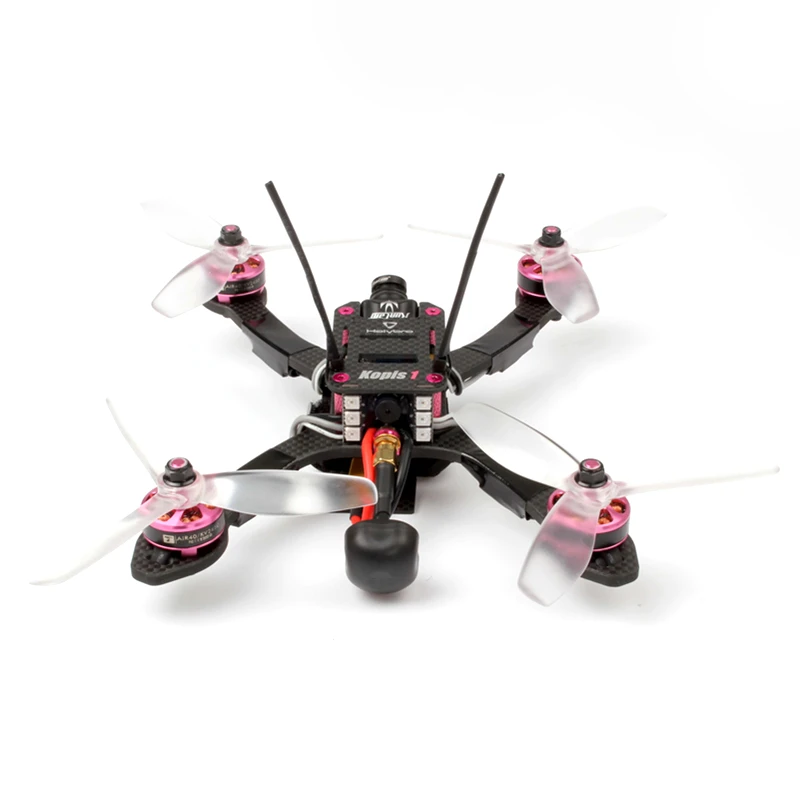

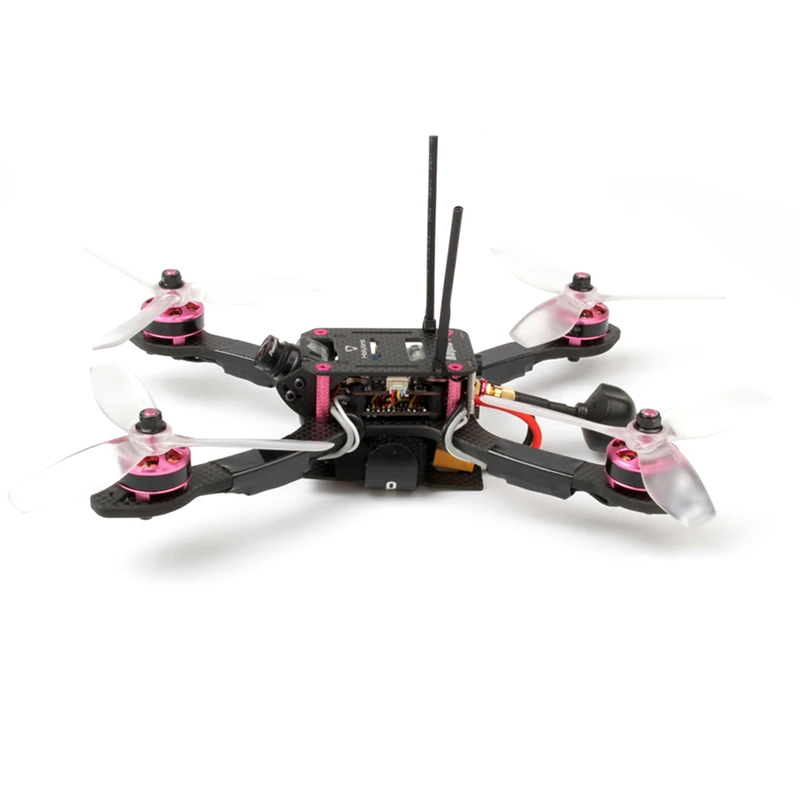

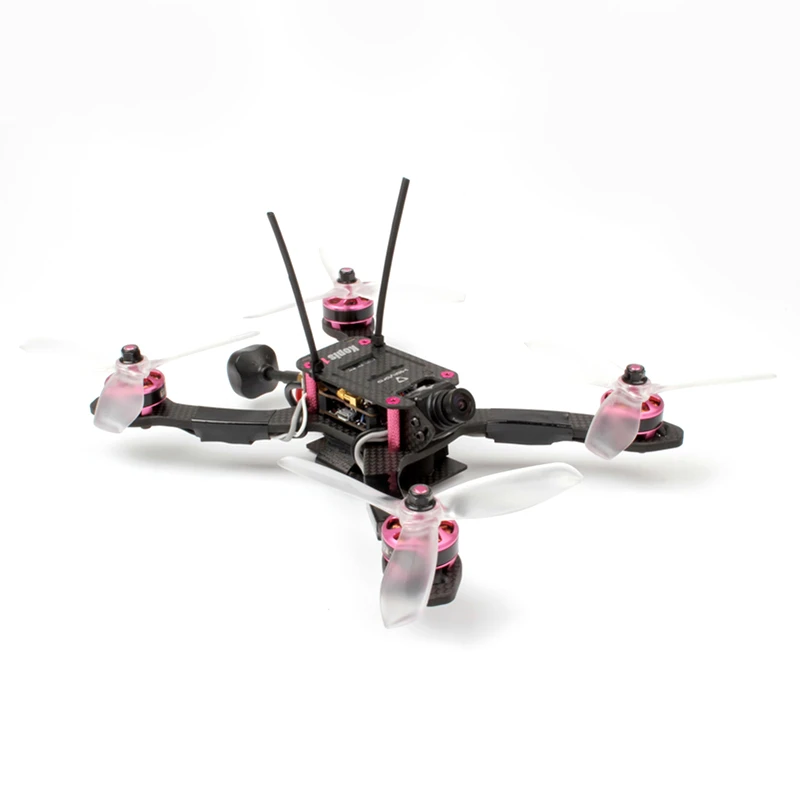

Kopis is a high-performance FPV racing drone from Holybro, low-deck design means centralized mass and excellent handling. Stretched-X motor layout is the choice of top racers because the rear props are further from the “dirty air” coming from the front props. The result is smoother cornering and higher top speed. The FPV antenna is in a unique location behind the quad, to protect against damage. Kakute flight controller and Atlatl video transmitter give perfectly integrated control of all quadcopter systems. Tmotor AIR40/2450kv motors give a great balance of raw speed and flight time. They won’t kill your batteries either! Kopis gives all the performance, looks, and durability of a hand-built machine, without ever having to pick up a soldering iron!
We provide PNP version (without receiver) and BNF version (with Frsky XSR receiver) for choice.
Item name: Kopis 1 FPV Racing Drone
Integrated bottom plate and frame arm: 5mm thickness
Other plates: 2mm thickness
Weight: 300 grams without battery
ESC: 30A BLHeli_32 (DSHOT1200 compatible) support 2~6S LiPo

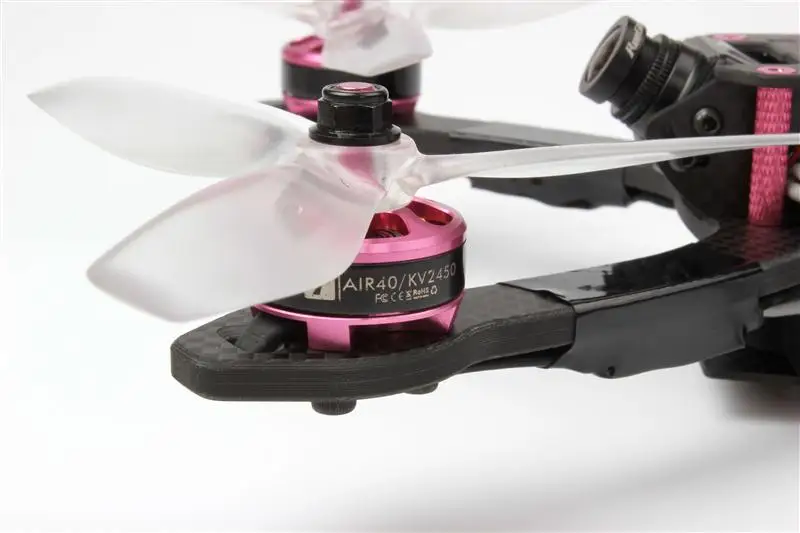

Motor: T-motor AIR40 2205 2450KV
Kakute F4 AIO flight controller:
MCU: STM32F405RGT6 32-bit processor
IMU: ICM20689 (SPI)
128 Mbit Dataflash chip for Blackbox logging
Atlatl video transmitter:
Transmit power: 15mW, 25mW, 100mW, 200mW, 400mW, 600mW
MMCX Antenna connector for easy, secure connection.
Won’t break or come loose like the IPEX connector used on other VTX.

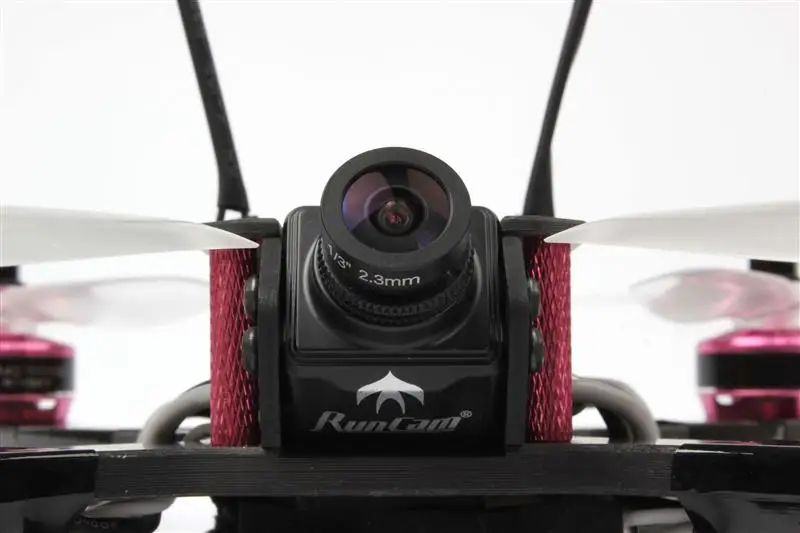

Runcam Swift Mini 130 Degree 600TVL FPV Camera PAL/NTSC:
Image sensor: 1/3″ Sony- Super HAD II CCD
Horizontal resolution: 600TVL
Signal system: PAL / NTSC
S/N Ration: >60dB(AGC OFF)
Electronic shutter speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain control(AGC): YES
Back light compensation(BLC): YES
Day/Night: color / auto / B&W
Power: DC 5 to 36V
Net weight: 12g
dimension: 22.3mm * 22mm * 27mm
5mm full 3K carbon fiber Twill
Counter-sunk screws for great appearance and smooth finish
Kakute F4 fc- with soft-mounted gyro for great filtering of vibration
Betaflight OSD included. Monitor voltage and battery capacity in your FPV goggles. Change PIDs and Rates using your transmitter sticks
5.8GHz 40CH atlatl video transmitter
Control the VTX channel and transmit power from the OSD using your transmitter sticks. No more button-pushing.
Programmable LED board controllable in Betaflight. Buzzer included.
RunCam Swift Mini FPV camera.
Adjustable camera tilt from 0 degrees to 90 degrees uptilt.
Serial receiver supported (SBUS, iBUS, Spektrum). Legacy PPM and PWM receivers not supported.
Holybro Kopis 1 FPV Racing Drone English ManualNote：
BNF:Comes with Frsky XSR receiver
PNP:Without transmitter and receiver.
1 x Kopis FPV racing drone
4 x T-motor AIR40 2205 2450KV
4 x 30A BLHeli_32 ESC
1 x 5.8G 40CH Atlatl VTX
1 x 5.8 GHz FPV antenna
1 x Kakute F4 AIO flight controller
4 x 5045 tri-blade propeller CW
4 x 5045 tri-blade propeller CCW
1 x Battery strap (installed)
1 x Gopro4 mount stand

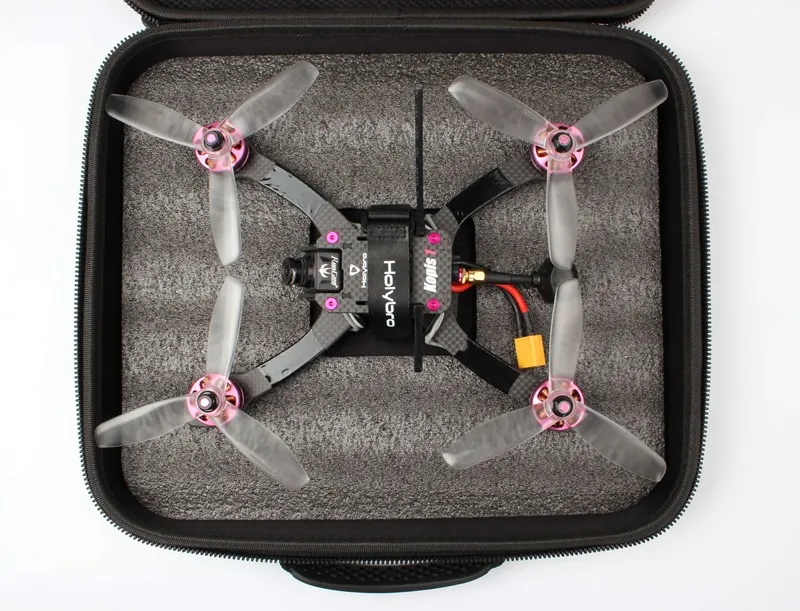

1 x carrying case
1 x Frsky XSR receiver (BNF only)
