HGLRC XJB – 145 145mm Micro RC Racing Drone PNP 5.8G FPV 600TVL CCD / 72-channel VTX / F4 FC with OSD

1 order
View cart→

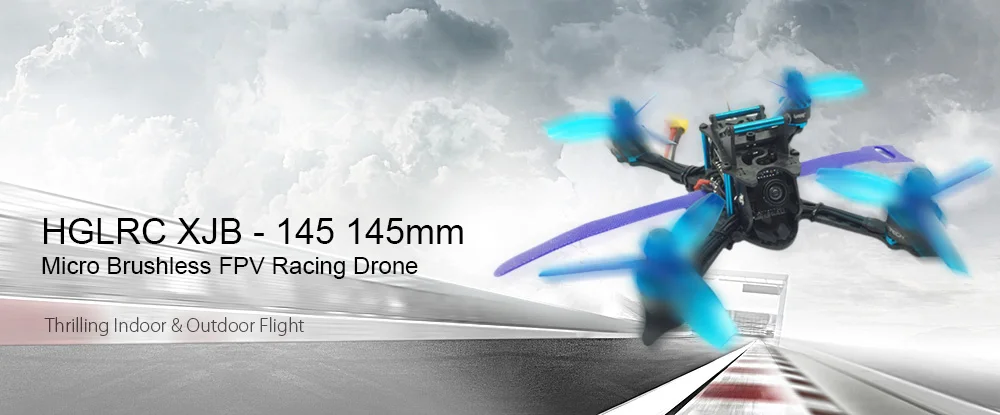

HGLRC XJB – 145 145mm brushless FPV racing drone features a bigger wheelbase intended for both indoor and outdoor flight. The 5.8G 72CH video transmitter provides more options of channels for the real-time video feed and output power selection. The module is separate from the flight controller and ESC, which is good for heat dissipation. You are able to enjoy flying at a breathtaking speed because the drone supports up to 112A continuous current and has four HF1407 3600KV high thrust motors.

Main Features:
● Ultralight 145mm carbon fiber frame with 3mm thick chassis, resistant to crash
● Advanced F4 flight control system with OSD, VTX and 4-in-1 BLHeli – S 28A DShot ESC
● More powerful HF1407 3600KV micro brushless motor + 3045 three-blade propeller
● 5.8G real-time FPV, 600TVL CCD camera with 2.3mm 120-degree FOV lens

Carbon Fiber Frame
Model: VX145
Wheelbase: 145mm

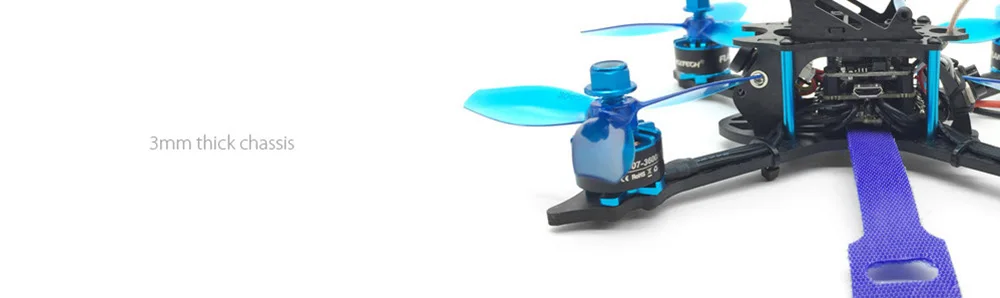

Arm thickness: 3mm
Bottom plate thickness: 3mm
Lateral plate thickness: 1.5mm
Weight: 29g

Micro F4 Flight Controller ( DShot Version )
MPU: MPU6000 ( SPI )
Black box: 16MB flash
Input power: 2 – 4S LiPo
OSD: BetaFlight OSD
BEC output: 5V 3A
Compatible receiver: SBUS / PPM / DSMX

4-in-1 BLHeli – S 28A ESC
Power supply: 2 – 4S LiPo
Continuous current: 4 x 28A
Burst current: 4 x 35A
BEC output: no
Firmware: BLHeli – S 16.5

XJB – TX20 Mini FPV Transmitter
Frequency: 5.8GHz

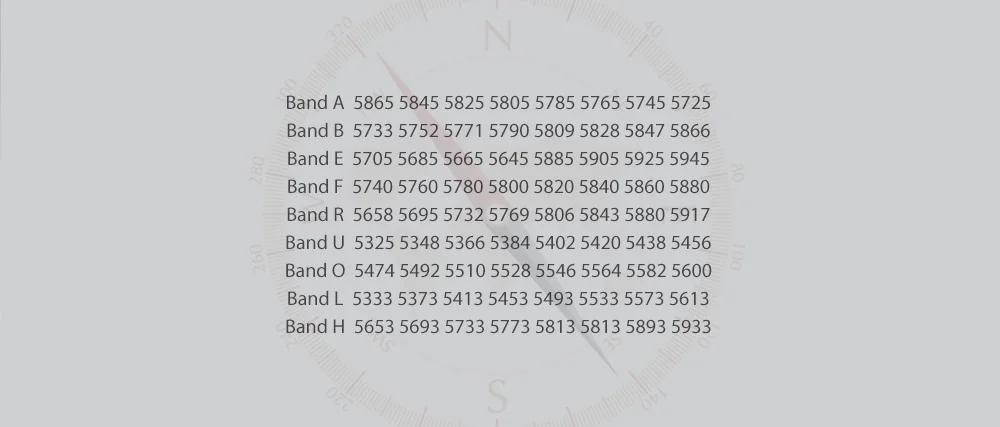

Number of channels: 72 ( with RaceBand: 5325 – 5945MHz )
Output power: 0 / 25mW / 100mW / 250mW switchable
Input voltage: 7 – 24V
BEC output: 5V 3A
TV system: NTSC / PAL
Antenna connector: IPEX
Image transmission range: 200m ( 25mW ) / 400m ( 100mW ) / 600m ( 250mW )

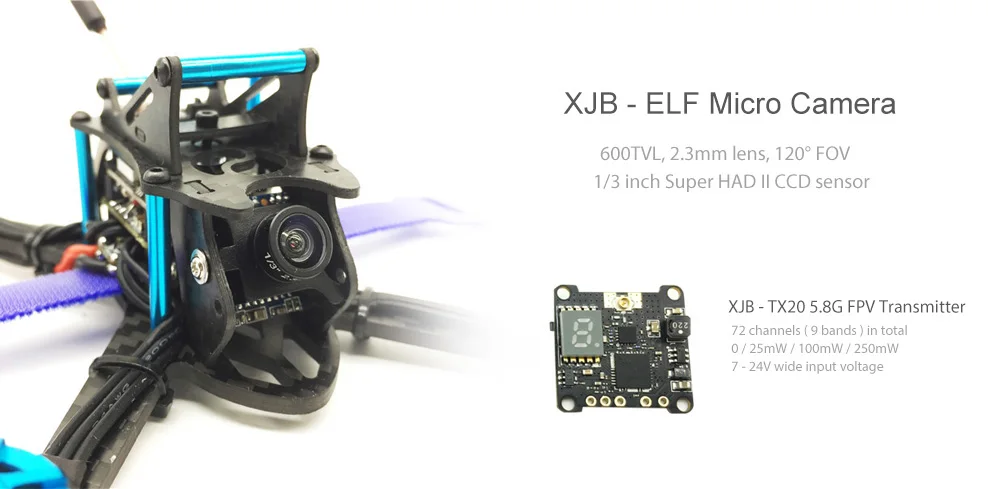

XJB – ELF Camera
Image sensor: 1/3 inch Super HAD II CCD
Horizontal resolution: 600TVL
Lens: 2.3mm 120-degree FOV
Min. illumination: 0.01 lux
Signal system: NTSC / PAL


TypeFrame Kit
Motor TypeBrushless Motor
Flight Controller
Flight Controller TypeF4
Remote Controller Specifications
Video Resolution600TVL ( horizontal )
Video StandardsPAL
Electronic Speed Controller
Burst Current4 x 35A
Input Voltage2 – 4S
Balance Charger
Charger Informations
Dimension and Weight
Product weight0.1200 kg
Package weight0.4080 kg
Product size (L x W x H)12.70 x 10.90 x 5.00 cm / 5 x 4.29 x 1.97 inches
Package size (L x W x H)17.50 x 9.50 x 11.50 cm / 6.89 x 3.74 x 4.53 inches
Package Contents
Package Contents1 x Drone, 4 x Propeller










Brand Name:
 Remote Control
Aerial Photography:
Plugs Type:
 As description
Controller Mode:
State of Assembly:
Age Range:
 > 14 years old,> 6 years old
Controller Battery:
 As description
Power Source:
Model Number:
 HGLRC XJB - 145
Remote Control:
 12.70 x 10.90 x 5.00 cm
Charging Time:
 As description
Action Time:
 As description
Package Includes:
 Original Box,Camera
 15 days
Remote Distance:
 As description
 Brushless Motor
Charging Voltage:
 As description
Control Channels:
 4 Channels

Packaging Details

0.408kg (0.90lb.)
18cm x 10cm x 12cm (7.09in x 3.94in x 4.72in)
