Specification:
Brand Name: EMAX
Model: Babyhawk R

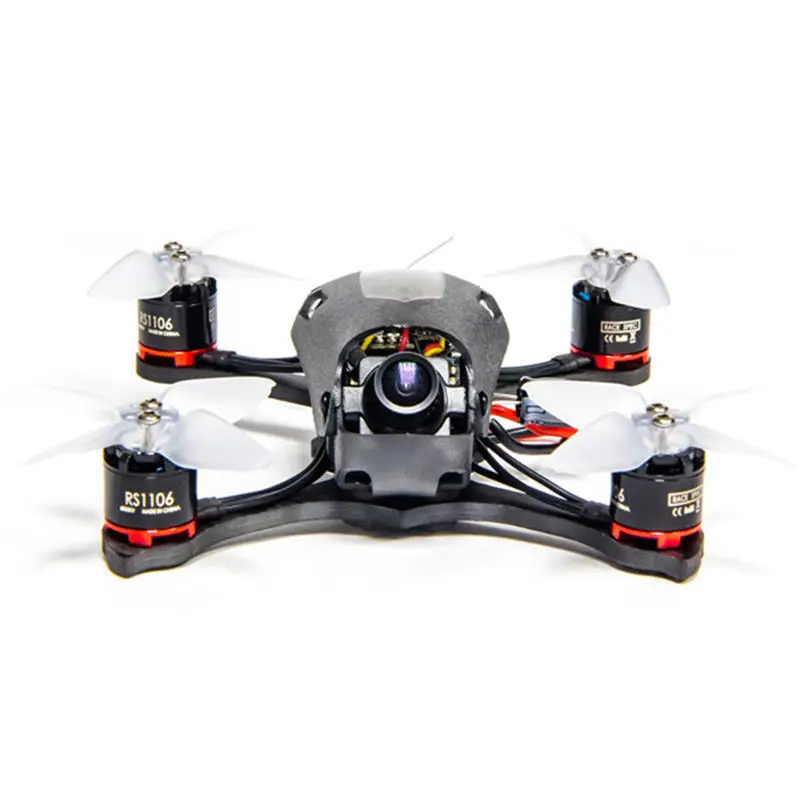

Item Name: 112mm Wheelbase F3 Magnum 5.8G FPV Racing Drone
Material of Frame: Carbon Fiber
Wheelbase: 112mm
Arm Thickness: 3mm

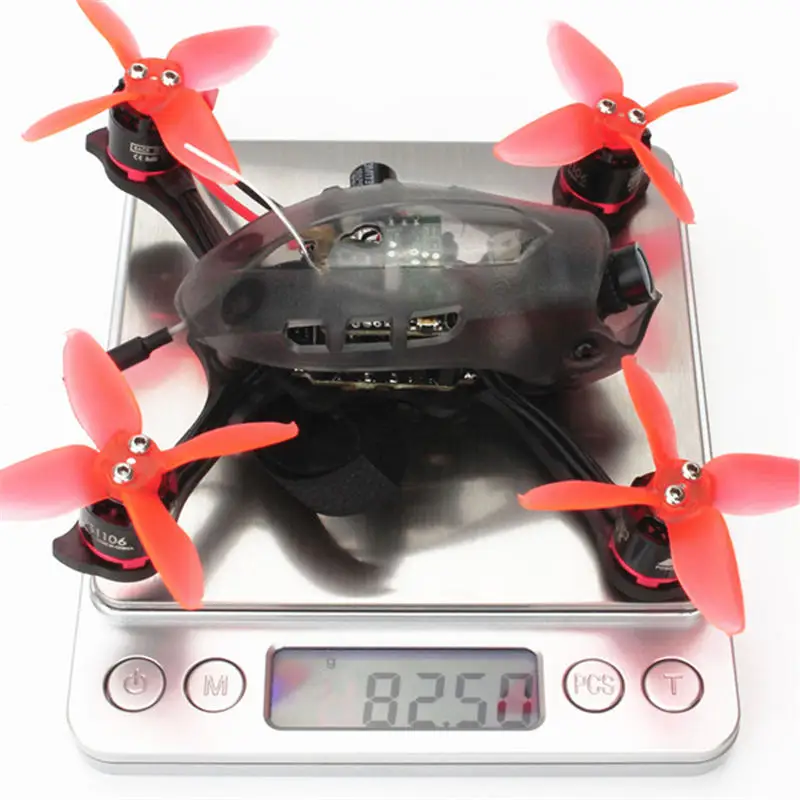

Weight: 82.5g ( without battery)
Flight Controller & ESC : Emax F3 Magnum Flight Controller & 12A 4 In 1 ESC mini Flytower
Motor: Emax RS1106 6000KV Brushless Motor
Propller: Emax Avan Micro 2 Inch 4-Blade Propeller
VTX: 5.8G 40CH 25/200mW Switchable VTX
Camera: Foxeer Micro Arrow 650TVL Micro CCD Camera
Version: PNP Version ( Without Receiver)
BNF Version ( With Emax Tiny Receiver, compatible with Frsky D8 Mode )
Lipo Battery: Support 3S / 4S Lipo Input
Emax F3 Magnum Flight Controller & 12A 4 In 1 ESC mini Flytower
Tower Height: 19mm
Tower Net Weight: 8.65g
Mounting Hole: 20x20mm
F3 Flight Controller | Firmware | Omnibus F3 Betaflight Target |
MCU | STM32F303 | |
Accelerometer/Gyro | MPU6000 ( Connected via SPI ) | |
OSD | Built-in betaflight OSD | |
Buzzer | On-Board | |
BEC | Integrated with 5V@ 3A BEC output | |
LED Pad | Addressable | |
Avaliable Receiver Type | PPM/SBUS/Spektrum | |
Size | 24x24mm; 20x20mm (M2) Mounting Hole | |
Net Weight | 3.32g |
12A BL_S 4 In 1 ESC | Con. Current | 12A |
Burst Curren | 15A (10S) | |
Support Voltage | 3-4S Lipo | |
Firmware | BLheli_S | |
MCU | EFM8BB21F16G , 50mhz | |
Choic of Protocol | DShot up to 600, Multishot, Oneshot125 | |
PCB Board | 30z High TG PCB Board | |
Size | 24x25mm ; 20x20mm ( M2 ) Mounting Hole | |
Net Weight | 4.40g |
Features:
– 40 Channel 5.8g VTX with LED info display and switchable transmission power from 25/200mw
Package Included:
1x Emax Babyhawk R 112MM Frame
4x Emax RS1106 6000KV Motor
1x F3 Magnum F3 Flight Controller
1x 12A BLheli_S 4 In 1 ESC
4x EMAX AVAN Micro 2 Inch Propeller
1x Emax Receiver ( Only BNF Version has)
1x 650TVL mini Camera
1x 5.8G 40CH 25/200mW VTX





Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
