Eachine Wizard TS215 215mm FPV Racing RC Drone F4 5.8G 72CH 40A BLHeli_32 720P DVR 1200TVL BNF PNP

4
Quantity:
Color:BNF with XM receiver PNP without receiver
View cart→


Description:

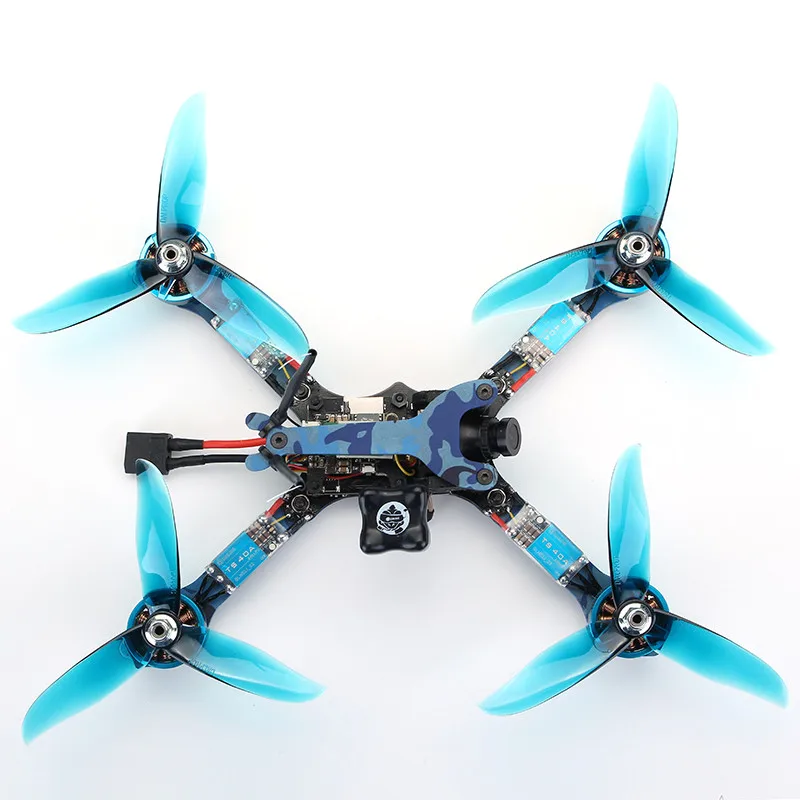

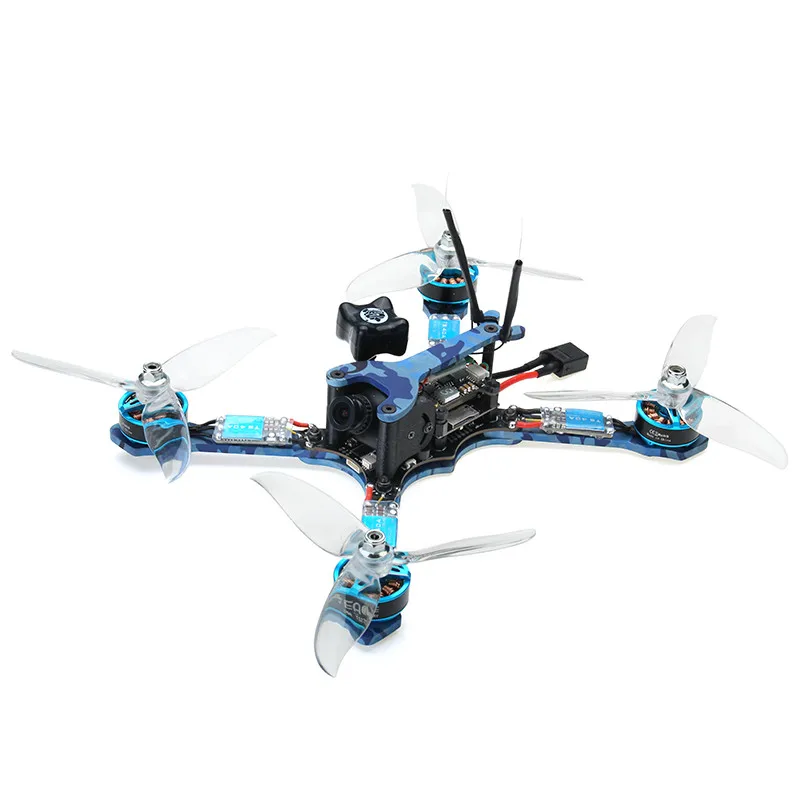

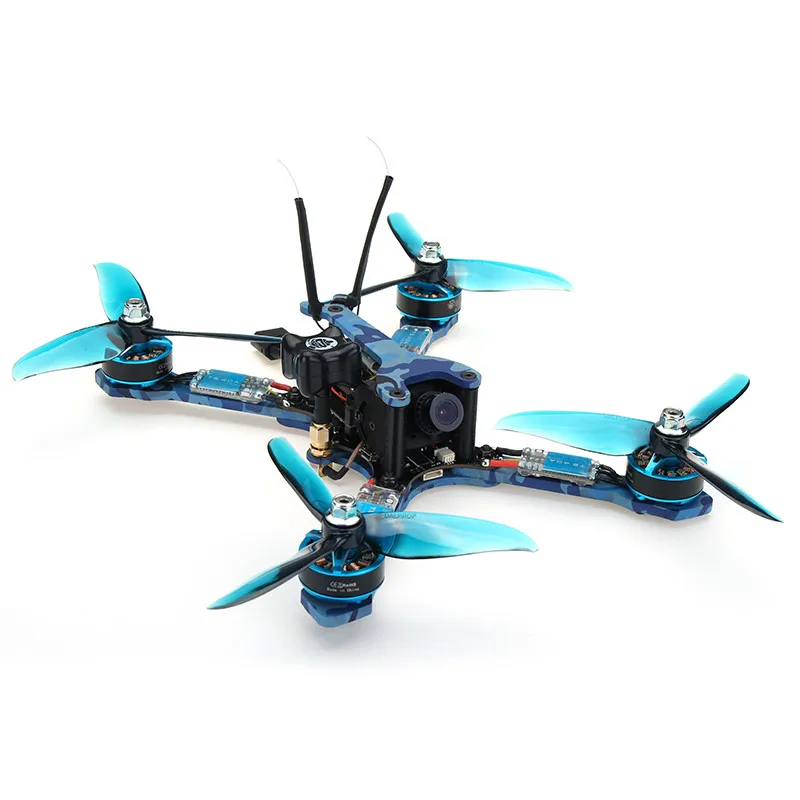

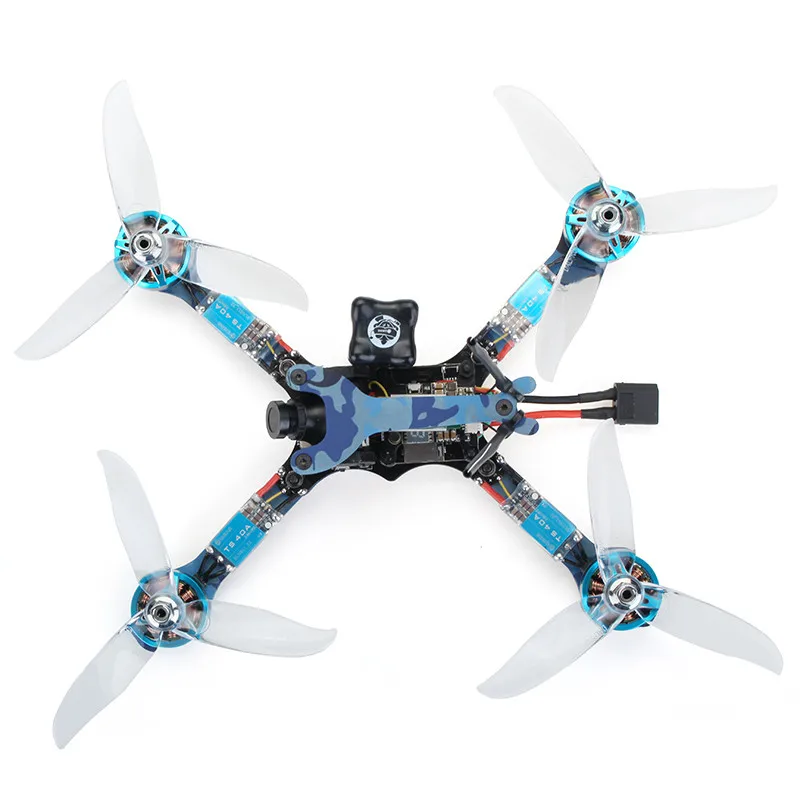

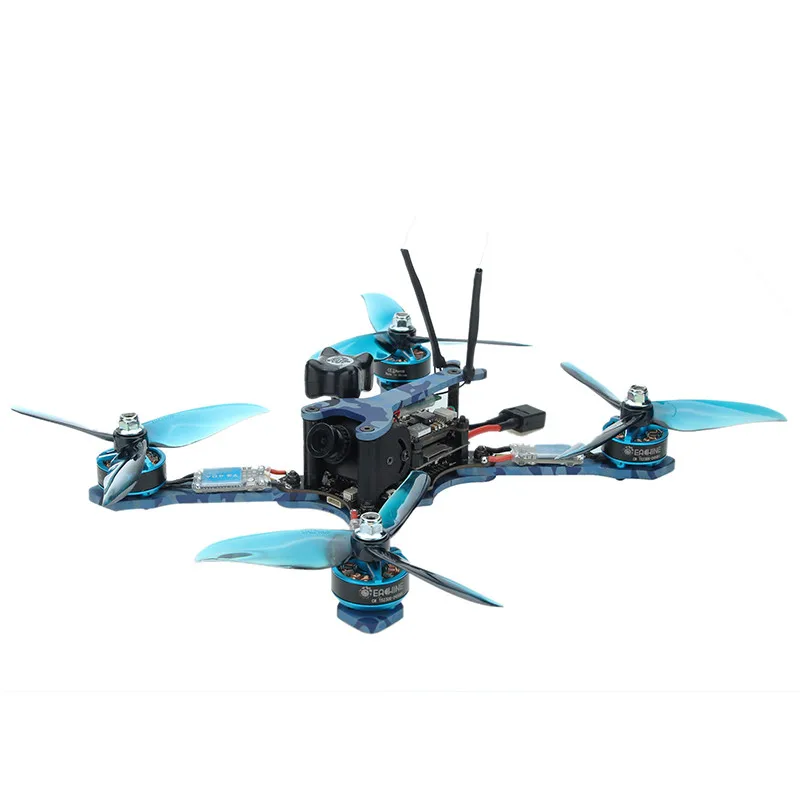

Eachine Wizard TS215
Wheelbase: 215mm
Material: 3K carbon fiber
Frame arm thickness: 4mm
Top plate thickness: 3mm
Bottom plate thickness: 3mm
Artist: hydrographics transfer printing
Version: optional BNF version and PNP version
Weight: 329g (excluding battery)
Package weight: 870g
Package size: 243mmx95mmx262mm


TS 40A BLHeli_32 Brushless ESC
BEC: no
Continuous current: 40A
for peak current (5S): 45A
Input voltage: 2-6S
Current sensor: built in
LED indicator onboard, the light colors are adjustable.
Supports Dshot1200, Dshot600, Dshot300, Dshot150.

TS2306 2450KV Brushless Motor
KV: 2450
NO.OF cell: 2-6S
Thrust: 2300g (16V 6040 2-blade prop)
Framework: 12N14P
Motor shaft: 5mm
Weight: 32.5g

Customized Omnibus F4 Flight Controller
CPU: f4STM32 F405 SCM
Barometer: BMP280
Input voltage: 3-4S
Sensor: MPU6000 SPI
With SD slot
Built in OSD
Built in 5V 3A BEC

5.8G 72CH 25mw / 200mw / 500mw / 800mw VTX
Input voltage: 7-24V
Extra features: smart audio, 0.01mW (parameter-adjusting mode)
Power supply: 5V camera @ under 0.3A max.
Output voltage: 25mW-100mA 200mW-200mA 500mW-260mA 800mW-300mA @ 12V
Range: up to 4km with omnidirectional RHCP antennas
Antenna connector: MMCX, RP-SMA
Port connector: JST, 4pin
for dimensions: 30.5×30.5mm
Weight: 8.5g (excluding antenna)
Material: 128g double copper
Adjustable 25mw / 200mw / 500mw / 800mw
Supports smart audio (remote parameter adjustment)


1200TVL CCD Camera
Lens: 2.8mm
Size: 25mm*25mm
Weight: 9.5g
System: PAL
Working voltage: DC5-12V
Working current: 70mA (low power consumption)

Frsky XM+ Micro D16 SBUS Receiver (BNF version only)

Dimension: 21.5*12*3.5mm(L x W x H)
Weight: 1.6g
Number of channels: up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
Operating voltage range: 3.7~10V
Operating current: 30mA @5V
Operating range: full range
With RSSI output on board: analog 0~3.3V
Firmware upgradeable
Compatibility: FrSky D16 mode

Storage Board 720P HD DVR
Supports 720p HD recording
Supports Max. 32G storage card
Suggest to use class10 storage card
Save format: mp4.avi file format, n/p system

DALPROP Cyclone T5046C 3-blade propeller
Size: 5046 5×4.6
Mounting hole: 5mm
Color: blue and transparent white

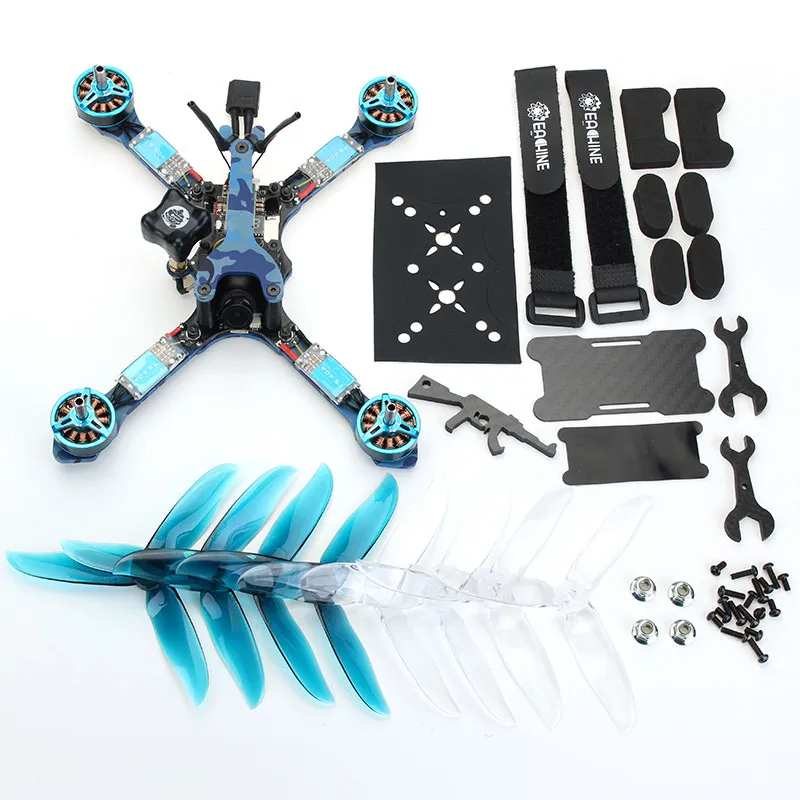

Package included:
1 x Eachine Wizard TS215 frame kit
4 x TS 40A BLHeli_32 Brushless ESC
4 x TS2306 2450KV brushless motor
1 x F4 flight controller
1 x 1200TVL CCD camera
1 x 5.8G 72CH 25mw 200mw 500mw 800mw switchable VTX
2 x DALPROP 3-blade propeller transparent white CW
2 x DALPROP 3-blade propeller transparent white CCW
2 x DALPROP 3-blade propeller blue CW
2 x DALPROP 3-blade propeller blue CCW
1 x Antenna
1 x Battery plate
2 x Battery strap
2 x Carbon fiber wrench
4 x Landing skid gear frame anti-vibration sponge




















Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.



Power Source:
 Electric
Dimensions:
 243mmx95mmx262mm
Remote Distance:
 As Description
Charging Voltage:
 As Description
Action Time:
 As Description
Plugs Type:
 As Description
Warning:
 NO
Package Includes:
 Original Box,Camera
Age Range:
 > 14 years old,12-15 Years,Grownups,8-11 Years
Charging Time:
 As Description
Warranty:
 As Description
Model Number:
 Eachine Wizard TS215 215mm
Motor:
 Brush Motor
Controller Battery:
 As Description
Material:
 Plastic,Carbon Fiber,Metal
State of Assembly:
 Ready-to-Go
Remote Control:
 Yes
Aerial Photography:
 No
Features:
 Remote Control
Type:
 Helicopter
Brand Name:
 EACHINE

Packaging Details

Type:
 piece
Weight:
0.985kg (2.17lb.)
Size:
26cm x 24cm x 10cm (10.24in x 9.45in x 3.94in)
