New! Eachine BAT QX105 Micro FPV Racing Quadcopter

94% of buyers enjoyed this product! 37 orders
326
Quantity:
Color:DSM2 DSMX FLYSKY FRSKY
Shipping:
Free




aeProduct.getSubject()
Description:  User Manual Guide

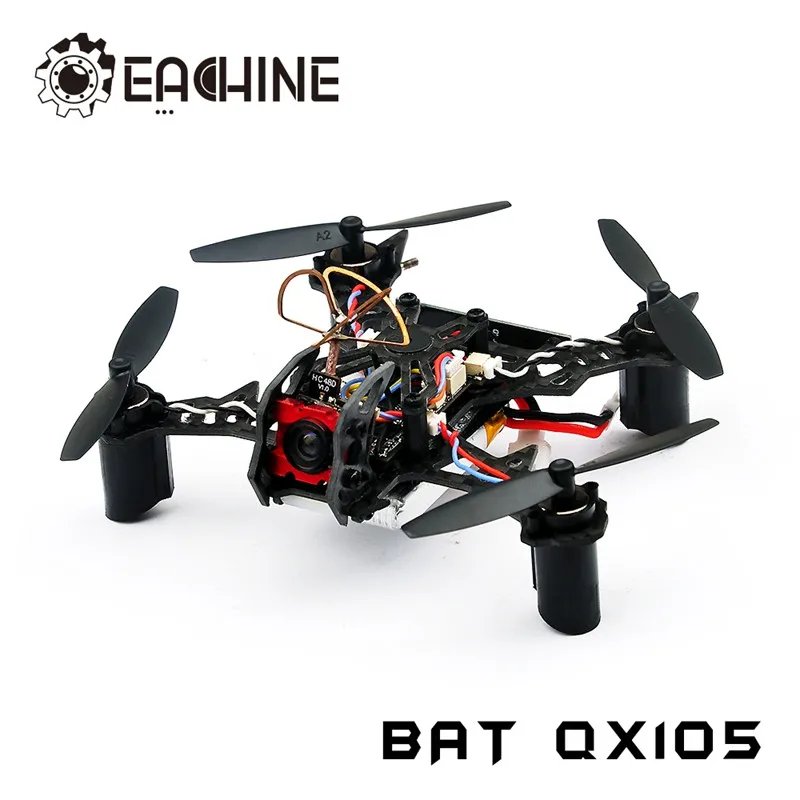

The Eachine BAT QX105 is a New Design Micro FPV Racing Drones built-in OSD both for Indoor or Outdoor, the new QX105 comes with Betaflight firmware which can bring you an amazing FPV flight experience. The Black Edition 1020 Coreless motor support more powerful output , makes the QX105 more stable and faster, just like a beast. The adjustable angle of camera, The OSD, The LED_Strip, The carbon fiberglass frame, The buzzer, All that you can thought of the equipment for the FPV flight , it has ready. So take The Eachine BAT QX105 to your home now!Specification:
Brand Name: Eachine
Item NO.: QX105
Wheelbase: 105mm
Size: 112*106*43mm
Weight: 56.5g (Without Battery)
75g (With Battery)
Flight controller: Eachine AIOF3_BRUSHED Built-in OSD (STM32 F303 MCU/ MPU6000 VIA SPI)
Firmware of Flight controller: Betaflight 3.0.1 (Target:OmnibusF3)
Motor: Coreless 1020 Black Edition CW/CCW
Propeller: New Design 66mm CW/CCW 2-blades propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
OSD: Betaflight OSD
Battery: 3.7V 600mah Lipo battery
Flight time: 5 minutes (Battery voltage at 2.8v)Features:
More powerful 1020 Black Edition Coreless motor
Jaw-dropping flight performance
Airmode/Angle/Acro mode support
Adjustable Angle of Camera (0°~15°)
Built-in Betaflight OSD
Radio Stick to control PID Tunes
LED_STRIP Ready
Buzzer Ready
Telemetry RSSI Output ready
V-bat DetectorReceiver Option:
-Frsky D8 mode SBUS Output 8ch With RSSI output (OSD display or X9D telemetry)
-Flysky compatible 8ch PPM receiver(AFHDS 2A Mode)
-DSM2/DSMX compatible ReceiverCompatible:
1. Frsky Receiver compatible with FRSKY X9D/X9D PLUS(D8 mode),and XJT (D8 Mode),DJT DFT DHT.
2. Flysky Receiver compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F.
3. DSM2/DSMX compatible Satellite receiver

Package included:
1 x QX105 Frame kit
6 x 1020 Coreless Motor
1 x AIOF3_BRUSHED Flight Controller Built-in RX
1 x 5.8G VTX w/Camera antenna
8 x 66mm Propeller
2 x 3.7V 600mah Battery
1 x LED_STRIP
1 x Buzzer
1 x USB Charging cable
1 x Paddle propeller
aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()







Brand Name:
 EACHINE
Type:
 Helicopter
Features:
 Remote Control,Flashing
Aerial Photography:
 No
Action Time:
 5 minutes (Battery voltage at 2.8v)
Age Range:
 8-11 Years,> 14 years old,> 8 years old,12-15 Years,Grownups
Controller Battery:
 3.7V 600mah Lipo battery
Dimensions:
 112*106*43mm
State of Assembly:
 Ready-to-Go
Package Includes:
 USB Cable,Charger,Original Box,Camera,Operating Instructions,Batteries
Motor:
 Brush Motor
Material:
 Plastic,Metal
Charging Voltage:
 As Description
Control Channels:
 4 Channels
Controller Mode:
 MODE1,MODE2
Warranty:
 As Description
Plugs Type:
 As Description
Warning:
 NO
Remote Distance:
 As Description
Charging Time:
 As Description
Power Source:
 Electric
Model Number:
 QX105
Remote Control:
 Yes

Packaging Details

Type:
 piece
Weight:
0.329kg (0.73lb.)
Size:
18cm x 20cm x 8cm (7.09in x 7.87in x 3.15in)
