ARF 130mm FPV Racing Mini Drone Carbon Quadcopter Frame SP RACING F3 ACRO Emax RS1306 motor LittleBee 20A OPTO PRO 3045

94% of buyers enjoyed this product! 2 orders
39995
Quantity:
Color:Emax 3300KV Emax 4000KV

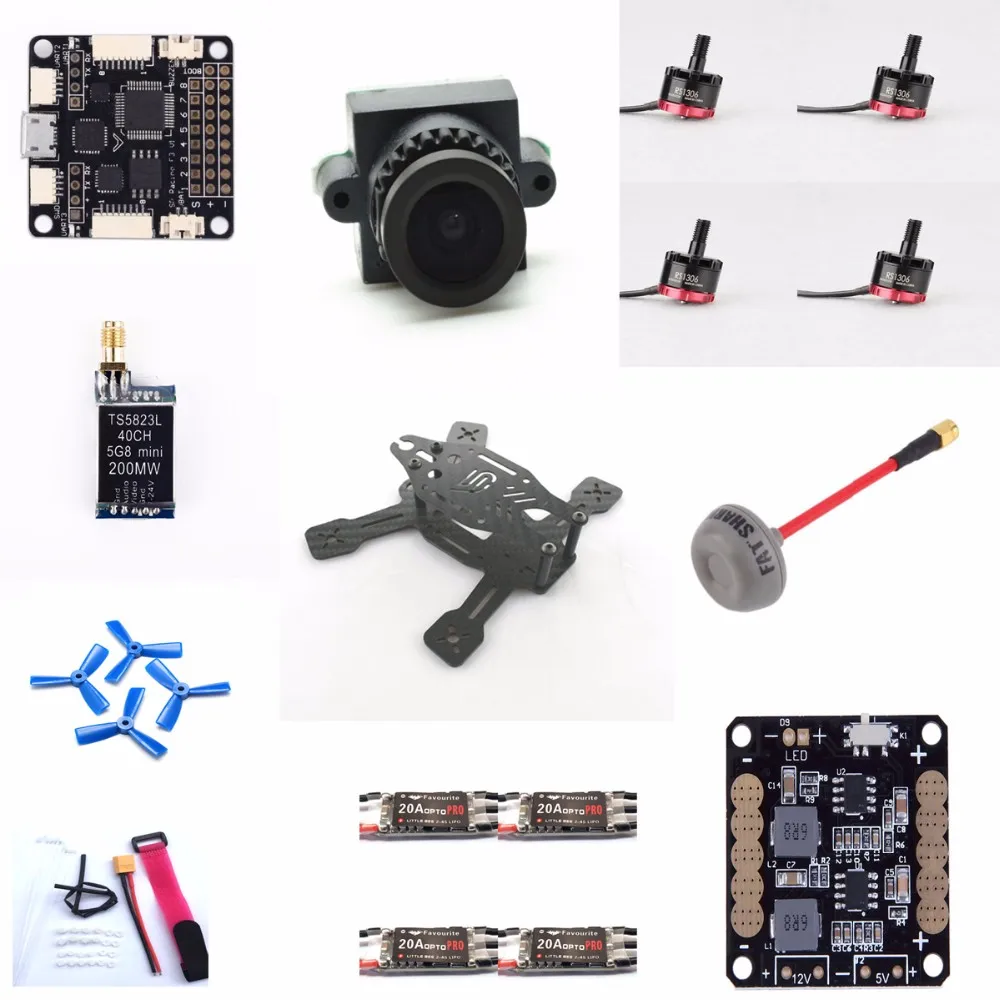

Package Included ;
-Mini 130 Carbon Fiber FPV Frane Kit x 1 set
-Emax RS1306 3300KV/4000KV Motor x 4 set
– LittleBee 20A pro ESC BLHeli OPTO 2-4S x 4 set
-SP Racing F3 Flight Controller Acrox 1 set x 1 set
-CC3D ESC Ditriibution Power Board With Bec 5-12v x 1 set
-3045 Triblade x 4 pair
-800 TVL 1/3 CCD Camera x 1 set
-Fatchark antena RP-smale antena x 1 pc
-TS 5823L VTX 200mw x 1 set
-Battery Strap / shrink tube / cable ties / nlyon / 16awg / jst connetor
SP RACING F3 (ACRO)
Descriptions:
Item Name: SP Racing F3 Flight Control for Multicopter Deluxe Version
Version: Deluxe 6DOF (without MS5611 Barometer and HMC5883 Compass)
– 36x36mm board, 30.5 mm mounting holes.
– STM32F3 CPU.
– High-capacity Flash (Acro 6DOF and Deluxe 10DOF)
– MPU6050 Accelerometers and Gyroscopes
– MS5611 Barometer (Deluxe 10DOF)
– HMC5883 Compass (Deluxe 10DOF)
– MicroUSB socket.
– 4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
– 2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
– 8 x 3 pin though-holes for pin headers for ESC / Servo connections.
– 2 x 4 pin though-holes for the 2x serial ports .
– 2 x 2 pin though-holes for battery voltage and buzzer.
LittleBee 20A OPTO PRO ESC Specifications:
Input: 2-4s Lipo
Constant: 20 Amps
Burst: 30 Amps(10 seconds)
Weight: 6g w/wires
Dimensions: 24.5 x 12.5 x 3mm
Motor wire: 50mm 20g
Signal wire: 100mm 22g
MCU: Silabs F396 @ 48Mhz
PCB – 4 Layer Blind Pole PCB – 3oz Pour
Mosfet: N-Channel
BEC: None
Emax RS1306 3300KV/4000KV Motor Specification:
Brand: Emax
Item name: RS1306 RaceSpec Motor
KV: 3300KV/4000KV
Weight: 12.69g
Recommend parts:
RS1306 3300 Recommended Propellers: HQ 3030×2, HQ 3030×3, HQ 3030×4 Gemfan 3040×2, Dal 3045×3 Bullnose
Features:
1. RS exclusive “Cooling” design on a micro sized motor
2. Designed for 3” propellers up to 4s battery
3. Integrated 5mm prop shaft with lock nuts
4. High Quality NSK Bearings for long lasting smoothness
5. Strong N52 Magnets
6. Factory Balanced Precision CNC Motor Bells
130 Quadcopter  Frame  Specifications:
Wheel Base: 130mm
Frame thickness: 2.5mm
Upper Board Thickness: 1mm
Net weitht: 32g
TS5823L Features:
This product has super mini size and light weight form factor, especially for today’s small and lightweight multi-rotor aircraft.More suitable for large series aircraft.
Each mini player is the ultimate image transmission choice.
Red: positive
Black: negative
Yellow: AV cable
Green: audio cable
Blue: Ground
Channel: 40
Transmission frequency: 5.6-5.9Ghz
Input voltage: 7-24V
Transmitting power: 23dBm/200mW
Working Current: 190mA / 12V
Working temperature: -10- + 85
Video bandwidth: 8M
Audio Coding: 6.5M
The transmitting end: RP-SMA Jack
Antenna terminal: RP-SMA plug
Board Color: blue
Dimensions: 38x18x8mm (excluding antenna base)
Net Weight: 16g
Spec  800TVL CCD :
– Weight:10g
– Lens: 2.8mm
– Pixel: PAL: 1020H×596V (61MP) NTSC: 1020H×508V (52MP)
– Effective Pixel: PAL: 976H×582V (57MP) NTSC: 976H×494V (48MP)
– Format  PAL/NTSC (optional, default PAL)
– Resolution: 800TVL
– DNR:2DNR, support 0-15 class adjustable
– Minimun illuminance: 0.01LUX/F1.2DNR: ≥48dB
– Video ouput: 1.0Vp-p/75Ω
– AGC:  0.25/0.50/0.75/1.00 adjustable, max 55db
– White balance: On/Off
– Explosure: Electric explosure
– Electric shutter1/50(1/60) – 1/100000
– Working voltage: 5V



Use:
 Vehicles & Remote Control Toys
RC Parts & Accs:
 Motors
Material:
 Composite Material
Remote Control Peripherals/Devices:
 ESC
Upgrade Parts/Accessories:
 Frame
Model Number:
 130mm Quadcopter Frame
For Vehicle Type:
 Airplanes
Four-wheel Drive Attributes:
 Assemblage
Tool Supplies:
 Assembled class

Packaging Details

Type:
 piece
Weight:
0.5kg (1.10lb.)
Size:
25cm x 20cm x 15cm (9.84in x 7.87in x 5.91in)
